Project

Serverless Portfolio

Overview

Automated CI/CD using GitHub Actions and CloudFormation to deploy a static frontend on S3 + CloudFront with OAC.
Serverless backend: API Gateway -> Lambda -> DynamoDB powering a visitor counter.
Observability: centralised CloudWatch logs + SNS alerts for incidents.

1. Architecture

The architecture ensures global performance, scalability, and secure delivery: CloudFront accelerates static content, Route 53 provides custom domain management, and DynamoDB + Lambda handle dynamic traffic tracking.

2. High-Level Diagram

This overview shows the core AWS services used, grouped by their role in the solution.

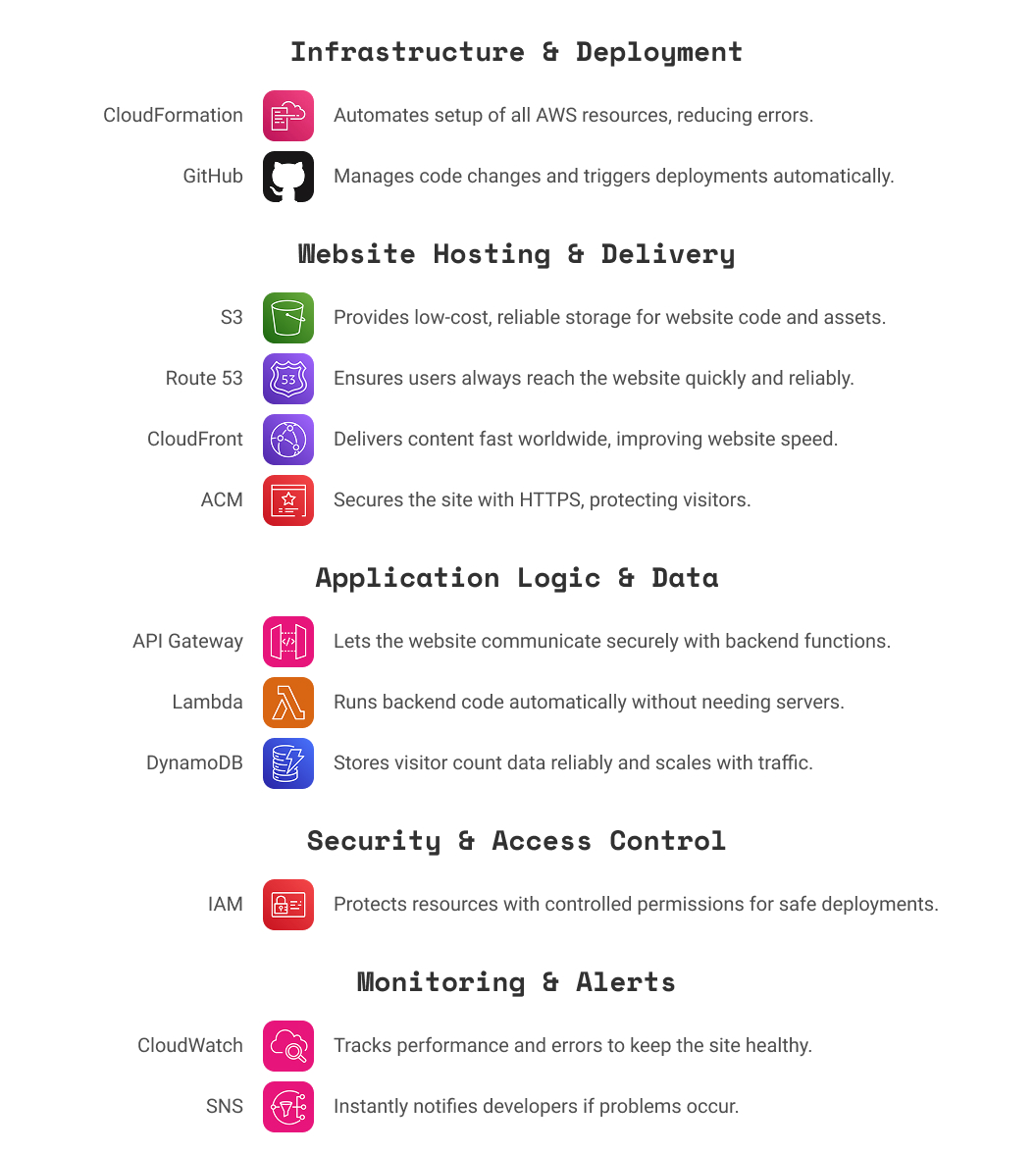

High-Level Diagram of solution, grouping AWS services together by their function.

3. Detailed Flow

Covers CI/CD pipeline, request/response path, logging, and permissions.

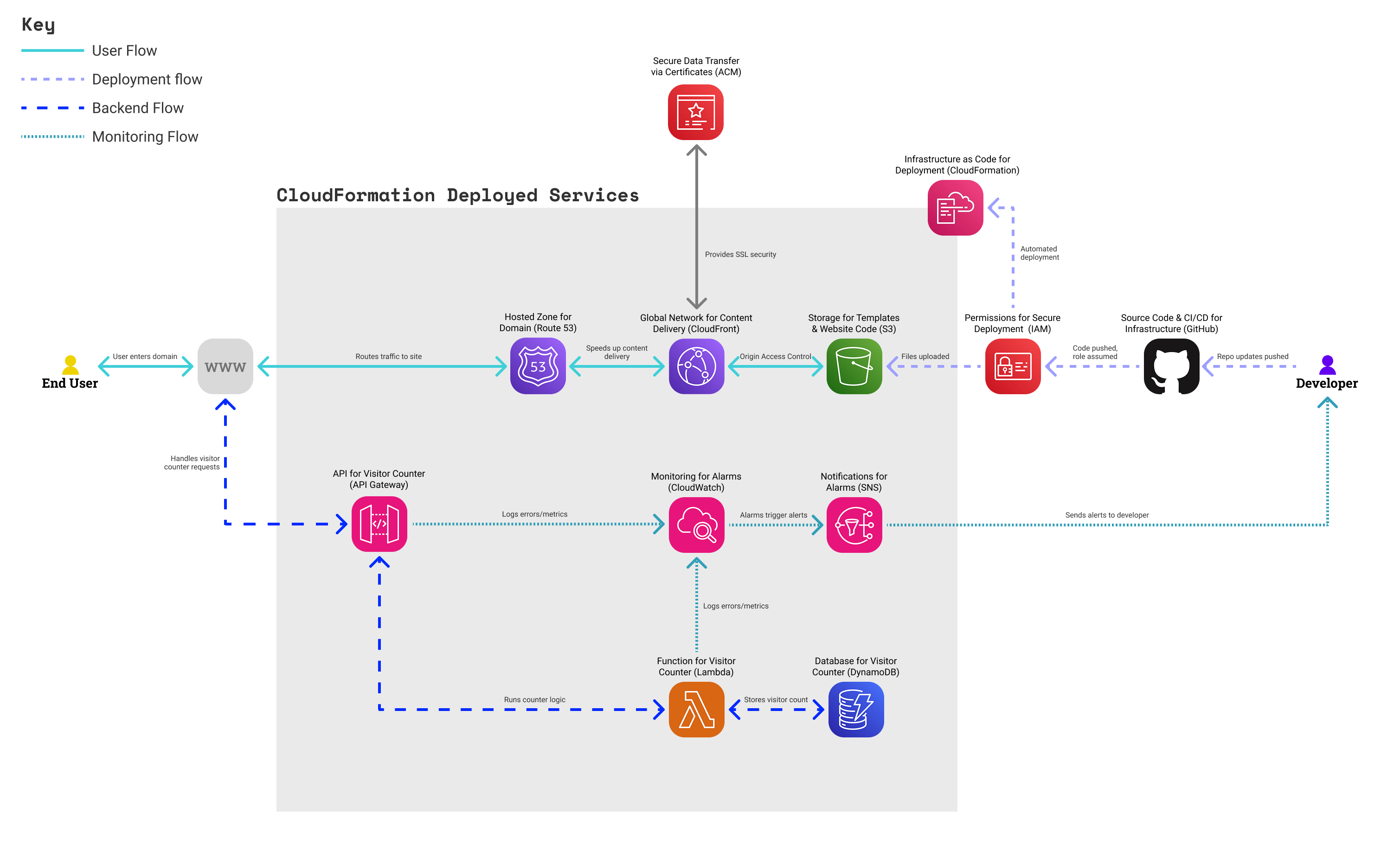

Detailed Flow diagram of solution, showing user, development, backend, and monitoring paths.

4. Workflow

A GitHub Actions pipeline automates deployments, reducing manual errors and ensuring production consistency which are key practices for enterprise-scale cloud operations.

5. Counter

Visitor counter:

Powered by Lambda + DynamoDB

A lightweight serverless app demonstrates event-driven design, showing how Lambda + DynamoDB integrate seamlessly for real-time features.

6. Lessons Learned

  • Built CI/CD pipeline to automatically deploy and validate stacks, reducing manual deployment time from hours to minutes.
  • Diagnosed complex IAM policy issues, striking the right balance between automation and security whilst reducing failures.
  • Improved observability by centralising logs in CloudWatch and adding SNS alerts to reduce Mean Time To Detect.
